50pcs L-Shape 4 Pin LED Strip Light Connector, Solderless Snap Down Connector Quick Splitter Right Angle Corner 90° Degree Flex 2 Conductor Connector for 10mm Wide 5050 3528 Single Color

Specification: Voltage: DC 0-24V Style: L-shaped Suitable for: RGB 5050 LED strip light Width: 10mm (4-PIN) Max Wattage Support: 72W Working Temperature: 0~40℃ Storage Temperature: -20~60℃ Installation : Open the connector using a tool with a thin edge Slide the L sheet under the connectors' prongs Cut the light strip on the copper cutting line; (Note: To avoid electric shock and burn, please turn off the power before cutting and reattaching light strips.) Peel off the back adhesive around the cutting line; (Note: For waterproof light strips, you need to peel off the silicone coating around the soldering line first.) Slide the light strips under the connector's prongs, with the + polarity on both strips aligned; (Note: The + on light strip doesn't have to match the + on the connectors. The connection works as long as the + on both strips are aligned.) Close the clip and set it up Note : The L-shaped PCB board is removable and detachable, please move it to the right place to ensure good electrical conductivity. After you have inserted the LED strip into the connector, before you close the cap of the connector, please slightly pull and push the LED strip to adjust the connection point, until you see the LEDs light up. If the LEDs do not light up, please use your finger to press a little hard on the 2 metal contacts in the connector, until you see the LEDs light up.

• ★Just slide the light strip under the connector's pins and snap the clip. (Tip: Please do not pry up the metal pins. Doing so may cause poor contact.). No matter in what orders are the RGB+ marked on the connectors, the connection work as long as the ”+” and “-” of the light strips on both sides are aligned.

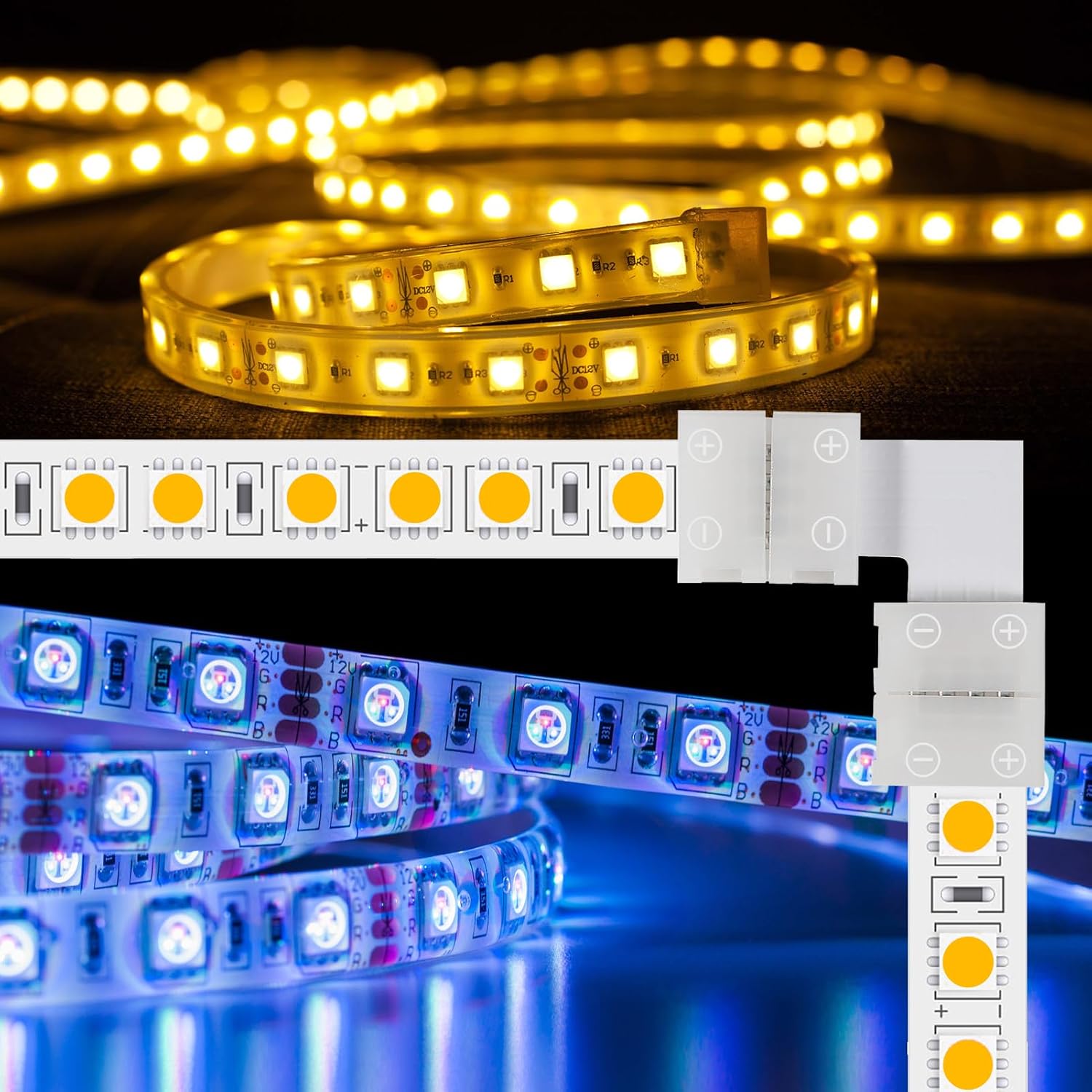

• ★L-shape flexible LED strip connector 10mm wide, 90 degree, clip-on connection, connects two RGB 5050 flexible strips and strip segments. Makes the connection easy and fast, especially when doing LED strip projects, saves more time.
• ★Made from PBT fireproof material for enhanced safety and high temperature resistance. Durable construction ensures long-lasting performance, LED light strip connectors can prefect protect the led strip lights from twisting and damaging the LED strip.
• ★Support a working voltage of 0-24V and a maximum load current of 4 Amp. Designed with heat resistance level from -20 to 100℃, ensuring reliable performance even in extreme temperatures and providing a secure and stable connection for your LED strip lights. Note: the power should be turned off before installation to ensure the safety of operation.
• ★Can be applied for all 4 pin 10 mm wide SMD 3528/5050 RGB LED strips, whether it is a waterproof one or non-waterproof. Perfect for various applications, including corner installations, tape lights, and connecting multiple LED strips together. Note: You should remove the silicon around the solder wire before inserting the waterproof strip to avoid accident.
